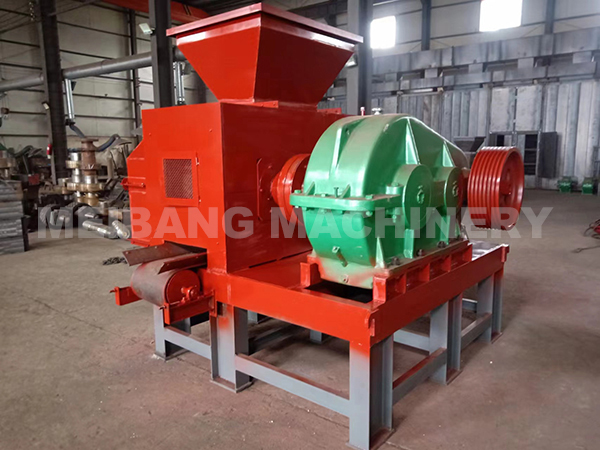

Dephosphorized gypsum ball press

The dephosphorized gypsum ball pressing machine can be used to press various powders, powders, waste materials, and slag. The materials formed by the ball pressing machine are energy-saving, environmentally friendly, easy to transport, and improve the utilization rate of waste. It has good economic and social benefits.

Production capacity: 3-45t/h

【 Processing range 】 0-3mm powder material.

【 Application field 】 Price operations in the metallurgical industry, cement industry, coal mining industry, and other fields.

Working principle:

Crushing method

The dephosphorized gypsum ball pressing machine is the main motor: transmitted to the reducer through a V-belt, the reducer is coupled, and then transmitted to the driving shaft through a pair of open gears, ensuring synchronization between the two roller shafts (constant speed reverse). The piston of the passive roller hydraulic cylinder is pressed against it (the constant pressure type is pressed against it by an inclined iron), and the system pressure is ensured by the hydraulic circuit, hydraulic control valve, and accumulator. The material is evenly fed into the forming machine hopper through a quantitative equipment from the storage bin, By adjusting the gate on the hopper, the material evenly enters the middle of the roller, and the unit forming pressure of the material is increased by compressing the roller with constant speed and reverse operation. The forming pressure at the center line of the roller reaches a reliable level. After the material passes through this line, the forming pressure quickly decreases, allowing the material to enter a state of ball separation and smoothly ball separation.

Components of dephosphorized gypsum ball pressing machine

1、 The feeding part mainly achieves quantitative feeding to ensure that the material evenly enters the roller room.

2、 The transmission part, the main transmission system is: electric motor - triangular belt - reducer - open gear - roller.

3、 The forming part mainly refers to the main machine part, and the core part is the rolling roller.

Product advantages:

The dephosphorization gypsum ball press has advantages such as compact structure, convenient maintenance, simple operation, short process flow, low energy consumption, and low failure rate.

The phosphogypsum ball pressing machine has strong oil resistance, acid and alkali resistance, easy operation, fast ball forming, and fast effectiveness.

After being suppressed, phosphogypsum is turned into treasure, avoiding secondary pollution and realizing its economic value.
