Rotary Dryer

The drum dryer is one of the traditional drying equipment, with reliable operation, high operating flexibility, strong adaptability, and large processing capacity. It is widely used in fields such as metallurgy, building materials, chemical industry, coal washing, fertilizer, ore, sand, clay, kaolin, sugar, etc., with a diameter of: Φ 1000- Φ 4000, length depends on drying requirements.At the center of the drum dryer, the addition of a dispersing mechanism can be avoided. The wet materials entering the drying cylinder are repeatedly picked up and thrown off by the plate on the wall of the rotating cylinder, and during the falling process, they are broken into small particles by the dispersing device, greatly increasing the specific area and fully contacting and drying with hot air.

It is widely used in alfalfa grass drying, alcohol lees drying, straw drying, sawdust drying, marigold drying, shaving drying, ginkgo leaf drying, Chinese herbal medicine drying, brewer's grains drying, Baijiu lees drying, potato starch residue drying, cassava residue drying, barley malt drying, melon seed drying, bagasse drying, hawthorn drying, rapeseed cake drying, vegetable drying, etc. The thermal efficiency is up to 80%, significantly higher than similar domestic equipment.

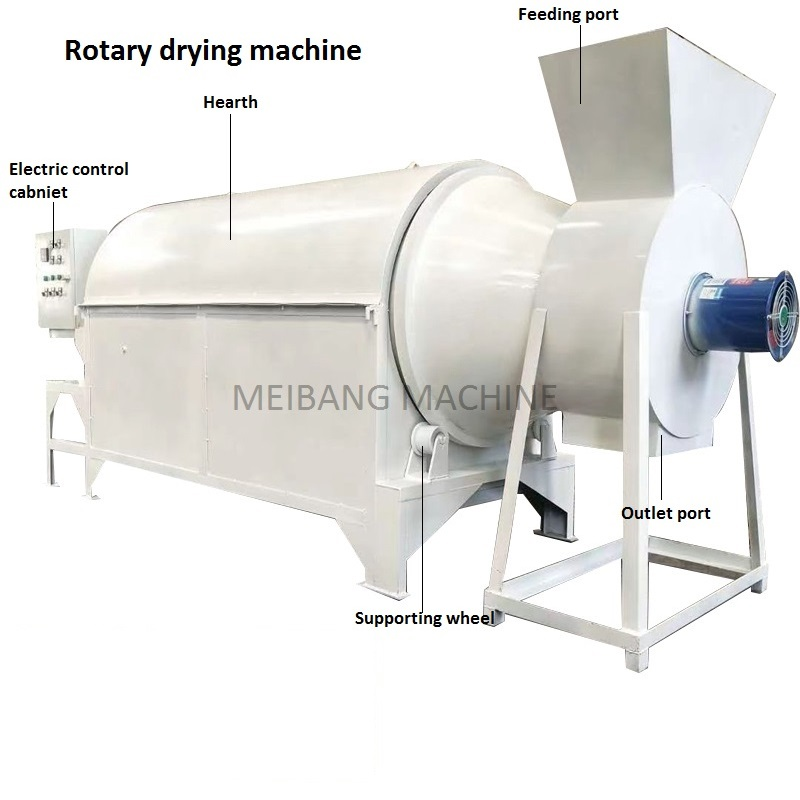

The machine is mainly composed of rotating parts, lifting plates, transmission devices, support devices, and sealing rings. A dryer is a cylinder that is slightly inclined to the horizontal direction. Materials are added from the higher end, and high-temperature hot flue gas flows into the cylinder in parallel with the material. As the cylinder rotates, the material moves to the lower end due to gravity. A plate is installed on the inner wall of the cylinder to pick up and sprinkle the material, increasing the contact surface between the material and the airflow, in order to increase the drying rate and promote the material to move forward. The dried product is collected from the bottom.

Product Parameter：

Features of drum dryer:

The dryer has a large processing capacity, low fuel consumption, and low drying cost. The dryer has the characteristic of high temperature resistance and can use high-temperature hot air to quickly dry materials. Strong scalability, with production margins considered in the design, even with a small increase in production, there is no need to replace equipment. The equipment adopts a self-aligning tugboat structure, with good coordination between the tugboat and the rolling ring, greatly reducing wear and power consumption. The specially designed blocking wheel structure greatly reduces the horizontal thrust caused by the tilting operation of the equipment. Strong overload resistance, smooth operation of the cylinder, and high reliability.

Scope of application of drum dryer:

1. Chemical, mining, metallurgical and other industries, such as ore, slag, coal, metal powder, clay, diatomaceous earth, kaolin.

2. Agriculture, feed, and fertilizer industries, such as straw, forage, leaves, fish meal, corn sauce, starch residue, distiller's grains, medicinal residue, fruit residue, soy sauce residue, sugarcane residue, peat, organic compound fertilizer, sludge, aquatic product waste, food factory waste, slaughterhouse waste, organic fertilizer, inorganic fertilizer, and ammonium phosphate fertilizer.

3. Dry powder and granular materials with special requirements. Such as various crystals, lightweight calcium carbonate, activated clay, magnetic powder, graphite, inorganic mud, clay, lime slurry, ore mud, phosphorus slag, aluminum factory red mud.

4. Materials that require low-temperature drying and require continuous drying in large quantities.
